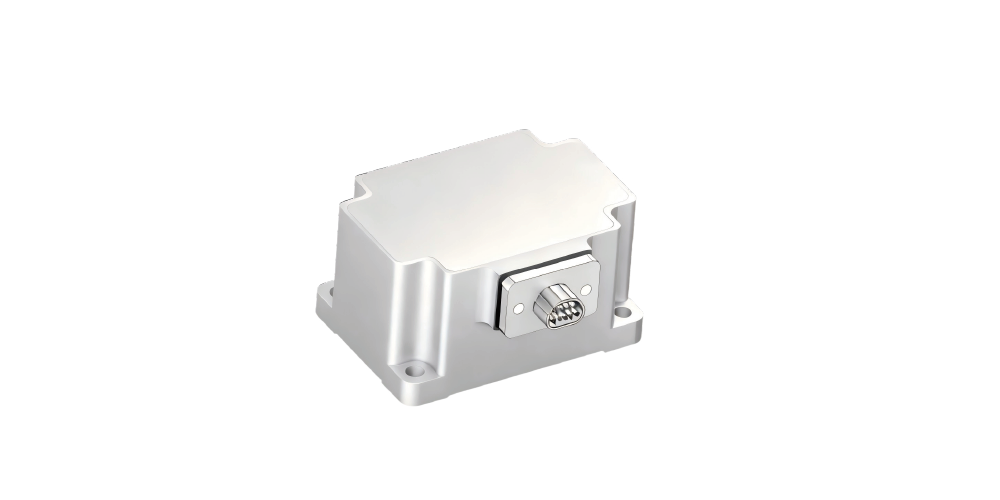

The HTS-T7 MEMS inclinometer is built around a dual-axis attitude sensing unit, temperature detector, signal processing circuit, rugged enclosure and supporting software, engineered to capture platform horizontal attitude angles.
Boarding a miniaturized mechanical package, it adopts comprehensive compensation algorithms covering full-temperature range, installation misalignment and nonlinearity. Such design enables steady high-performance readings across static, dynamic and severe working environments. It outputs stabilized, error-corrected measurement data to users through high-speed RS-422 serial communication.
This MEMS inclinometer maintains accurate measurements reliably, for static setups, dynamic operations as well as extreme working conditions.
Features Applications
• High precision, low noise, excellent repeatability • Geological equipment tilt monitoring• Full-parameter sensor compensation • Engineering vehicle leveling
• High output range • Precision machine level control
• Low power consumption, shock resistance • Bridge and dam monitoring
• Compact size, lightweight, easy to install • Borehole drilling rig attitude navigation
Performance Characteristics
|
Speci |
Unit |
HTS-T7 |
|
Range (customizable) |
° |
±80 |
|
Accuracy over at room temperature |
° |
0.02 |
|
Bandwidth |
Hz |
10 |
|
Starting time |
s |
1 |
|
Operating voltage |
V |
5~24 |
|
Operating current |
mA |
≤ 100 @18V |
|
Data update rate |
Hz |
20 |
|
Operating temperature |
℃ |
-40~60 |
|
Storage temperature |
℃ |
-45~70 |
|
Weight |
g |
<300 |
|

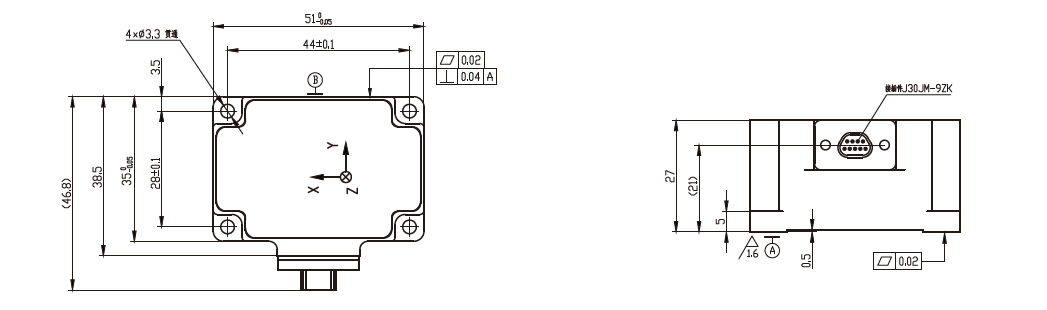

Size |
mm |
51*46*27 |
|
Interface |
—— |
RS-422 |
