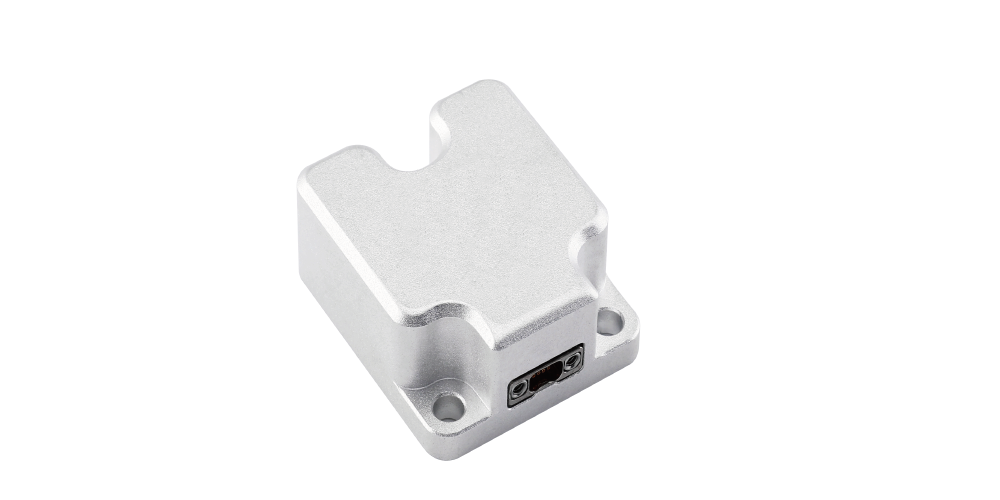

The HTS-T5 MEMS inclinometer integrates a dual-axis attitude sensor, a temperature sensor, a signal processing board, a structural housing, and dedicated software to measure the horizontal attitude angles of a platform.
Featuring a compact structural design and packaging, the inclinometer incorporates algorithms for full-temperature compensation, mounting misalignment compensation, and non-linearity compensation. These ensure consistent, high-performance operation under static, dynamic, and harsh environmental conditions, while delivering stable, reliable, and error-compensated measurement data to the user via a high-speed RS-422 serial interface.
Whether in static scenarios, dynamic operating conditions, or even harsh environments, this MEMS inclinometer consistently delivers precise data.
Features Applications
• High precision, low noise, excellent repeatability • Geological equipment tilt monitoring• Full-parameter sensor compensation • Engineering vehicle leveling
• High output range • Precision machine level control • Low power consumption, shock resistance • Bridge and dam monitoring
• Compact size, lightweight, easy to install • Borehole drilling rig attitude navigation
Performance Characteristics
|
Speci |
Unit |
HTS-T5 |
|
Range (customizable) |
° |
±15 |
|
Accuracy over full temperature range |
° |
0.01 |
|
Bandwidth |
Hz |
10 |
|
Starting time |
s |
1 |
|
Operating voltage(DC) |
V |
5~24 |
|
Operating current |
mA |
80 |
|
Data update rate |
Hz |
20 |
|
Operating temperature |
℃ |
-40~60 |
|
Storage temperature |
℃ |
-55~105 |
|
Weight |
g |
22.5 |
|
Size |
mm |
32*28*14 |
|
Interface |
—— |
RS-422 |

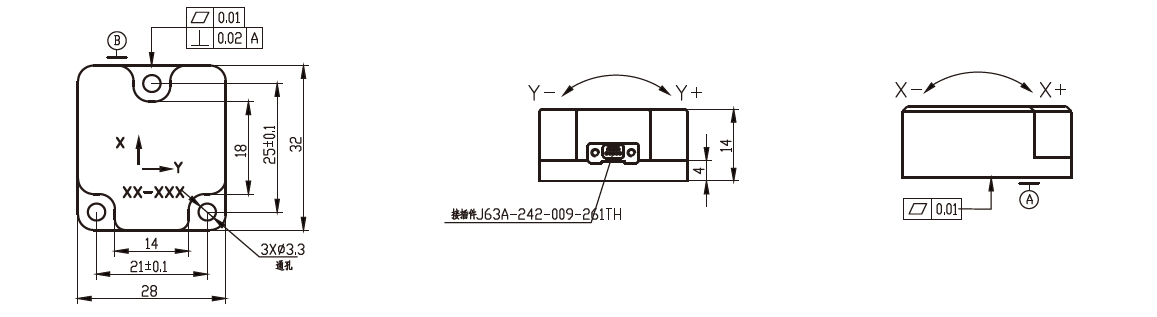

Dimension & Drawing
