What is a Quartz Flexible Accelerometer? How to select the most suitable Quartz Flexible Accelerometer?

Quartz flexible accelerometers China Professional Quartz Accelerometers supplier-Hitech Sensors Tech Co., Ltd are high precision accelerometer sensors which used to measure object motion with excellent sensitivity, wide frequency range and low noise. Quartz flexible accelerometers provide a high-performance solution for acceleration measurement in a wide range of applications. Its unique design combined with quartz crystals provides excellent sensitivity, board frequency range, noise suppression, and temperature stability. Quartz accelerometers’ superior accuracy and temperature stability make them the preferred choice for the highest precision applications in aerospace, defense, and scientific research. Their unmatched durability and stability in extreme conditions make them ideal for geophysical research, military-grade instrumentation, and space missions.



Quartz Servo Accelerometer: A general introduction

What is a Quartz Flexible Accelerometer?China Professional Quartz Accelerometers supplier-Hitech Sensors Tech Co., Ltd

Quartz flexible accelerometers are piezoelectric accelerometers that use quartz crystals as sensing elements. The operating principle of a piezoelectric accelerometer is that when a piezoelectric material (such as quartz crystal) is subjected to an external force, an electric charge proportional to the applied force is generated. A quartz flexure accelerometer measures acceleration by detecting the charge and converting it into a corresponding electrical signal.

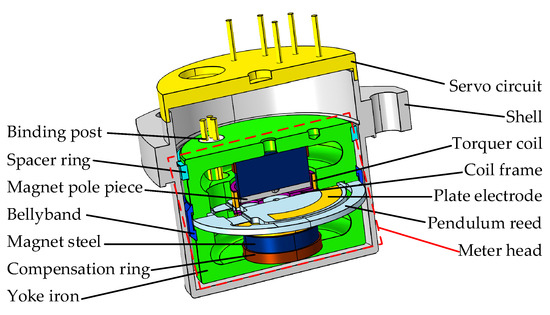

Components and Working Mechanism

The main components of a quartz flexible accelerometer include a quartz crystal, a force harvester (or mass), and an amplifier circuit. The force harvester is attached to the quartz crystal, then the quartz crystal is fixed to the housing of the accelerometer. When the quartz accelerometer is subjected to acceleration, the force harvester exerts pressure on the quartz crystal, generating an electrical charge. This charge is then amplified by an amplifier circuit and transformed into a voltage signal that is easily processed and analyzed.

Quartz flex accelerometers use flexure elements in their design. These elements act as both a mechanical amplifier and a low-pass filter, providing excellent sensitivity and low noise. The quartz flexible design enables the quartz accelerometers to achieve high resonance frequencies, which is crucial for accurate measurements in high-frequency applications.

What’s the benefits of Quartz Flexible Accelerometers?

Quartz flexible accelerometers have lots of advantages compared with other types of accelerometers.

•  High Sensitivity: The bending element in the quartz flexible accelerometer can amplify the generated charge, providing higher sensitivity than other piezoelectric accelerometers.

•  Wide Frequency Range: Quartz flexible accelerometers can accurately measure acceleration over a wide frequency range, which are widely used in various navigationapplications.

•  Excellent Noise Suppression: The natural low-pass filtering provided by the bending elements helps eliminate unwanted noise and ensures reliable and accurate measurements.

•  Temperature Stability: Quartz crystals has excellent temperature stability, which enables quartz flexible accelerometers to maintain consistent performance at various operating temperatures.

•  Long-term Stability: Quartz flexure accelerometers have minimal drift over time, ensuring consistent and reliable measurements throughout its entire lifecycle.



Applications of Quartz Flexible Accelerometers

Quartz flexible accelerometers are widely used in various industries.

•  Aerospace and Defense: These quartz flexible accelerometers are used for flight testing, vibration monitoring, aircraft, spacecraft, and missile systems. They also aid in inertial navigation, guidance, and control systems.

•  Automotive: In the automotive industry, quartz flexible accelerometers are used for collision testing, vehicle dynamics analysis, and car suspension system testing to enhance the vehicle safety stability.

•  Oil and Gas Exporing: Quartz-flex accelerometers are used in all kind of oil drilling tools, it can efficiently improve work efficiency and save costs.

•  Seismology and Earthquake Engineering: These quartz flexible accelerometers can provide high accurate measurements of ground motion during the earthquakes, which contribute to the development of seismic-resistant structures and early warning systems.

How to select the most suitable Quartz Flexible Accelerometer?

1. Measurement Range:Choose quartz accelerometer with a suitable measurement range.

2. Frequency Response: Make sure the quartz accelerometer's frequency response covers the range of your final application.

3. Sensitivity: Choose an accelerometer with sufficient sensitivity to detect the minimum acceleration of interest while avoiding overloading the device.

4. Temperature Range: Make sure the quartz accelerometer operates within the temperature range ,and ensure that the measurements are accurate and reliable.

5. Mounting Options: Pls. consider the avavilable mounting options.

6. Customized ability: We can customize the quartz accelerometers according to users’ request.
